LY-DS650 Fully Automatic Die-Cutting Machine (No Connection Point Only For Gray Board) Intelligent Circular Feeding High Precision High Efficiency

Name: LYDS650 Fully Automatic DieCutting Machine No Connection Point Only For Gray Board Intelligent Circular Feeding High Precision High Efficiency
Brand: Lishunyuan
Price: 1 USD

Wholesale LY-DS650 Fully Automatic Die-Cutting Machine (No Connection Point Only For Gray Board) Intelligent Circular Feeding High Precision High Efficiency from china suppliers

Maximum Die Cutting Size : 890*630mm

Model Number : LY-DS650

Precision Maximum Machine Speed : 1700-1770 times/hour

Overall dimensions : 3300*1650*2300mm

Price : Negotiate

Packaging Details : Film and plywood crate

Processable Paper : 300g ≤ Greyboard ≤ 2200g

Supply Ability : 15sets/month

Maximum Paper Feed Size : 900*640mm

Max Cutting Pressure : 125T

Payment Terms : T/T

Minimum Paper Feed Size : 250*400mm

Delivery Time : 15-20days

Die Cutting : Flat pressing

Maximum height of the receiving stack source : 1270mm

Brand Name : Lishunyuan

Maximum height of feed stack : 1280mm

Model : LY-DS650

Place of Origin : China

Main motor power : 7.5KW

Total power : 10KW

Overall weight : 4.5 tons

MOQ : 1

Source : 380V

Contact Now

LY-DS650 Fully Automatic Die-Cutting Machine

Intelligent Circular Feeding High Precision High Efficiency

No connection point only for gray board

Machine Features

Circular feeding reduces downtime for material refilling and effectively improves production efficiency
Easy operation and intelligent mold adjustment
Simply input product dimensions, and the machine will automatically calibrate the feeding position
Saves setup time and increases corporate profits
Stable performance, smooth and vibration-free overall operation with low failure rate
Compact structure saves workshop space and reduces enterprise operating costs

Client Bottleneck & Point Analysis

Advantages of Tie-point Design	Disadvantages of Tie-point Design
Ensure the integrity of the production process Improve the efficiency of waste removal and post-processes Low cost and mature technology	Increase follow-up processing procedures Prone to edge defects Difficult connection point control Limit process compatibility

Key Features

1200mm high circulating feeding platform board. Single loading enables long-time continuous production, reduces workers' feeding labor intensity, effectively cuts down downtime for material refilling, and greatly improves production efficiency.

Touch screen man-machine interface. Easy to operate. Simply input product dimensions, and the machine will automatically calibrate the feeding and receiving positions. Parameters can be adjusted flexibly according to production requirements for quick mold setting. Setting time in 20 minutes.

Optimized die cutting tools for three materials: grey board, white cardboard and paperboard. With vertical cutting edges and superior performance, it realizes half-cut and full-break cutting without pre-scoring. The cuts are smooth, free of burrs and protrusions.

The eccentric gear and toggle lever mechanisms on both sides turn the motor's power into the up-and-down movement of the platens, generating the high pressure needed for die-cutting.

Main Drive Mechanism (Flywheel & Eccentric Shaft). Powers vertical reciprocating motion of platens. Delivers stable, high-tonnage die-cutting pressure. Reduces vibration, improves operational stability.

The die-cutting plate is firmly pressed onto the upper platform to prevent displacement and loosening during operation, ensuring high die-cutting registration accuracy. Pneumatic pressure plate enables one-click locking and unlocking.

The locking cylinder is equipped with an interlock function. The machine only starts die-cutting after the die plate is fully locked in place, preventing equipment failure and safety accidents.

Safety protection devices. Loading, adjusting, positioning of sheets, and feeding and receiving can all be carried out from outside the machine. Protect the safety of workers.

Performance Comparison

Comparison Item	Manual Die-Cutting Machine	LSY Die-Cutting Machine
Production Efficiency	Manual loading and unloading, low speed and low output	Automatic circular feeding, continuous production with greatly improved efficiency
Labor Cost	Dedicated operator required with high labor intensity	One operator manages multiple machines, reducing labor and employment costs
Die-Cutting Accuracy	Manual alignment with large errors and unstable quality	Intelligent automatic positioning, precise registration and high product consistency
Machine Adjustment & Plate Changing	Pure manually adjustment, complicated operation and time-consuming	Intelligent adjustment, rapid pneumatic plate locking for efficient plate replacement, setup time in 20mins
Operating Performance	Severe vibration, average stability and high failure rate	Stable operation with low vibration, compact structure and reliable performance
Safety Protection	Basic protection with high operational risks	Built-in safety interlock devices for higher operational safety
Comprehensive Cost	Low initial purchase cost but high long-term labor consumption	Higher upfront investment, yet long-term cost reduction, efficiency improvement and higher profits

Technical Parameters

Model	LY-DS650
Die Cutting	Flat pressing
Maximum Paper Feed Size	900×640mm
Minimum Paper Feed Size	250×400mm
Maximum Die Cutting Size	890×630mm
Max Cutting Pressure	125T
Processable Paper	300g ≤ Greyboard ≤ 2200g
Precision Maximum Machine Speed	1700-1770 times/hour
Maximum height of feed stack	1280mm
Maximum height of the receiving stack source	1270mm
Source	380V
Main motor power	7.5KW
Total power	10KW
Overall weight	4.5 tons
Overall dimensions	3300×1650×2300mm

Company Introduction

LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters. After 20 years of development, the company has formed a complete sales network and after-sales service system. Product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.

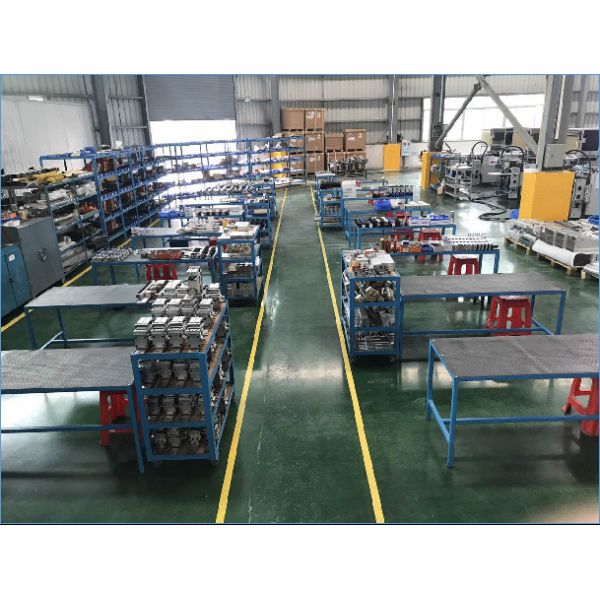

Workshop

Packing and Shipping

Frequently Asked Questions

What about machine warranty?

1 year warranty including free machine parts replacement (consumables are not included).

What is the production time while placing order?

Within 7-30 workdays.

Does the packing strong?

Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.
